*AIVRES*

DATASHEET

<b>K24V2-2S</b>

<b>2U 4-Node 2-Socket High-
Density Server Supporting
Liquid Cooling</b>

<b>K24V2-2S is a 2U 4-node 2-socket server delivering extreme compute density with 4th/5th gen Intel® Xeon® Scalable or AMD EPYC™ 9004 processors. With cold-plate liquid cooling support and energy saving features like EVAC heat sinks, HDD backplanes, and power capping, this highly efficient server lowers resource and energy consumption, deployment costs, and TCO of data centers.</b>

![figure](images/reducto/p001_figure_0006.jpg)

• 2x 4th/5th generation Intel® Xeon® Scalable or AMD EPYC™ 9004 processors per node

• Supports air cooling and direct-to-chip CPU + DIMM cold-plate liquid cooling

• 4x or 8x 2.5” SSD (15mm/7mm) storage configurations

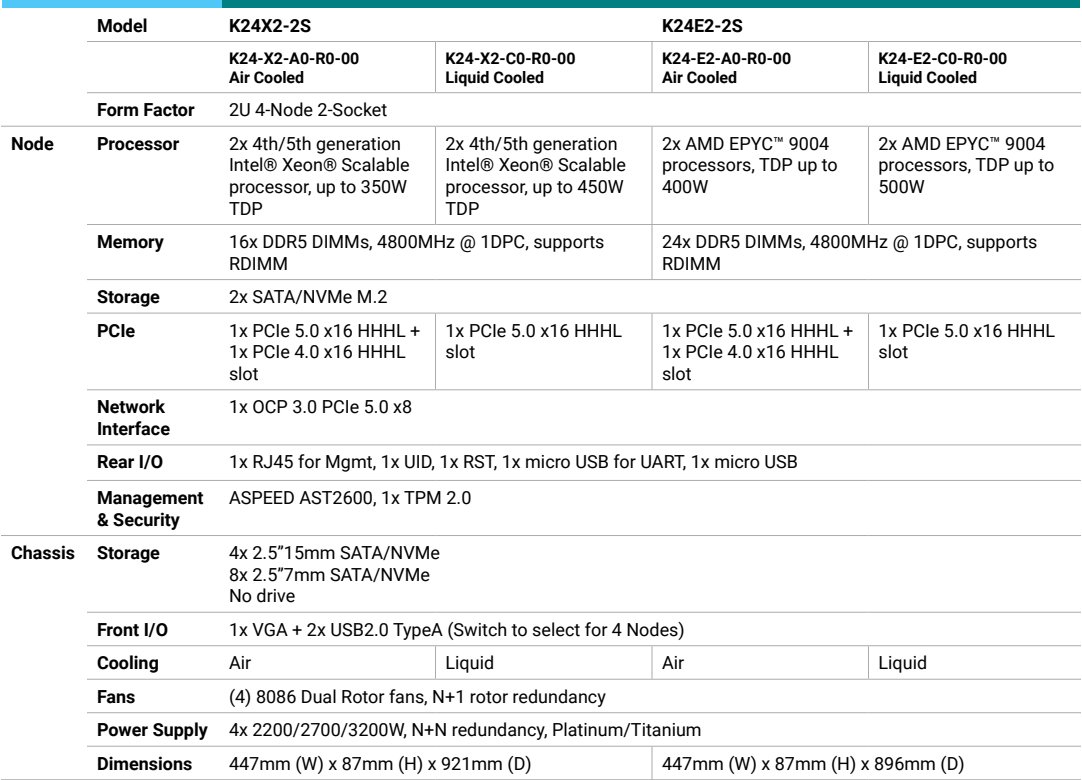

<b>Technical Specifications</b>

<table>
<thead>
<tr>
<th></th>
<th> <b>Model</b> </th>
<th colspan="2"> <b>K24X2-2S</b> </th>
<th colspan="2"> <b>K24E2-2S</b> </th>
</tr>
<tr>
<th></th>
<th></th>
<th> <b>K24-X2-A0-R0-00
Air Cooled</b> </th>
<th> <b>K24-X2-C0-R0-00
Liquid Cooled</b> </th>
<th> <b>K24-E2-A0-R0-00
Air Cooled</b> </th>
<th> <b>K24-E2-C0-R0-00
Liquid Cooled</b> </th>
</tr>
</thead>
<tbody>
<tr>
<td></td>
<td> <b>Form Factor</b> </td>
<td colspan="4"> 2U 4-Node 2-Socket </td>
</tr>
<tr>
<td rowspan="8"> <b>Node</b> </td>
<td> <b>Processor</b> </td>
<td> 2x 4th/5th generation Intel® Xeon® Scalable processor, up to 350W TDP </td>
<td> 2x 4th/5th generation Intel® Xeon® Scalable processor, up to 450W TDP </td>
<td> 2x AMD EPYC™ 9004 processors, TDP up to 400W </td>
<td> 2x AMD EPYC™ 9004 processors, TDP up to 500W </td>
</tr>
<tr>
<td> <b>Memory</b> </td>
<td colspan="2"> 16x DDR5 DIMMs, 4800MHz @ 1DPC, supports RDIMM </td>
<td colspan="2"> 24x DDR5 DIMMs, 4800MHz @ 1DPC, supports RDIMM </td>
</tr>
<tr>
<td> <b>Storage</b> </td>
<td colspan="4"> 2x SATA/NVMe M.2 </td>
</tr>
<tr>
<td> <b>PCIe</b> </td>
<td> 1x PCIe 5.0 x16 HHHL + 1x PCIe 4.0 x16 HHHL slot </td>
<td> 1x PCIe 5.0 x16 HHHL slot </td>
<td> 1x PCIe 5.0 x16 HHHL + 1x PCIe 4.0 x16 HHHL slot </td>
<td> 1x PCIe 5.0 x16 HHHL slot </td>
</tr>
<tr>
<td> <b>Network Interface</b> </td>
<td colspan="4"> 1x OCP 3.0 PCIe 5.0 x8 </td>
</tr>
<tr>
<td> <b>Rear I/O</b> </td>
<td colspan="4"> 1x RJ45 for Mgmt, 1x UID, 1x RST, 1x micro USB for UART, 1x micro USB </td>
</tr>
<tr>
<td> <b>Management &amp; Security</b> </td>
<td colspan="4"> ASPEED AST2600, 1x TPM 2.0 </td>
</tr>
<tr>
<td rowspan="6"> <b>Chassis</b> </td>
<td> <b>Storage</b> </td>
<td colspan="4"> 4x 2.5”15mm SATA/NVMe
8x 2.5”7mm SATA/NVMe
No drive </td>
</tr>
<tr>
<td> <b>Front I/O</b> </td>
<td colspan="4"> 1x VGA + 2x USB2.0 TypeA (Switch to select for 4 Nodes) </td>
</tr>
<tr>
<td> <b>Cooling</b> </td>
<td> Air </td>
<td> Liquid </td>
<td> Air </td>
<td> Liquid </td>
</tr>
<tr>
<td> <b>Fans</b> </td>
<td colspan="4"> (4) 8086 Dual Rotor fans, N+1 rotor redundancy </td>
</tr>
<tr>
<td> <b>Power Supply</b> </td>
<td colspan="4"> 4x 2200/2700/3200W, N+N redundancy, Platinum/Titanium </td>
</tr>
<tr>
<td> <b>Dimensions</b> </td>
<td colspan="2"> 447mm (W) x 87mm (H) x 921mm (D) </td>
<td colspan="2"> 447mm (W) x 87mm (H) x 896mm (D) </td>
</tr>
</tbody>
</table>

<details style="margin: 0.3rem 0 1rem; padding: 0.4rem 0.6rem; background: rgba(255,255,255,0.03); border-radius: 4px; border: 1px solid rgba(255,255,255,0.08);">
  <summary style="cursor: pointer; font-size: 0.75rem; color: rgba(255,255,255,0.55);">📷 view source screenshot for verification (page 1)</summary>
  <img src="images/reducto/p001_table_0011.jpg" alt="table source p1" style="max-width: 100%; margin-top: 0.6rem; display: block;" />
</details>

<u>www.aivres.com</u>

Copyright © 2025 Aivres. All Rights Reserved. The information contained herein is subject to change without notice.

Ver 2.0
