*AIVRES*

<b>DATASHEET</b>

![figure](images/reducto/p001_figure_0003.jpg)

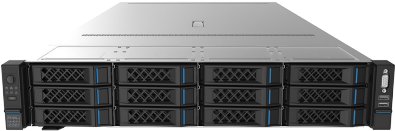

KR2180V2

<b>Flexible 2U 1-socket supporting up to 4 GPUs</b>

<b>The KR2180V2 with one AMD EPYC™ 9004 processor is a 2U server with flexible configurations. It can support up to 4 dual-width GPUs, making it highly scalable for many applications including AI, high-performance computing, and cloud computing.</b>

<figure style="margin: 1rem 0; padding: 0.6rem; background: rgba(255,255,255,0.04); border-radius: 4px;">
  <img src="images/reducto/p001_figure_0007.jpg" alt="figure p1" style="max-width: 100%; max-height: 480px; display: block; margin: 0 auto;" />
  <figcaption style="font-size: 0.78rem; color: rgba(255,255,255,0.55); text-align: center; margin-top: 0.5rem;">XXXXXX
XXXXX</figcaption>
</figure>

• 1x AMD EPYC™ 9004 supporting up to 96 cores and TDP 400W with air-cooling

• Supports up to 4 dual-width GPUs for AI applications

• Scalable, flexible configurations including a 24 NVMe drive config with PCIe Switch or NVMe Pass-through

AMD

<b>Technical Specifications</b>

Model: KR1180-E2-A0-R0-00
Processor: 1x AMD EPYC™ 9004 processor, TDP up to 400W
Memory: 24 DDR5 DIMM, support RDIMM/3DS DIMM, 12 Channels
Storage:
Front:
12x 3.5" SAS/SATA/NVMe
24x 2.5" SAS/SATA/NVMe/E3.S
25x 2.5" SAS/SATA/NVMe (21* SAS/SATA + 4* NVMe)
Internal:
2x SATA/PCIe M.2 SSD
4x 3.5" SAS/SATA
Rear:
4x 3.5" SAS/SATA
4x 2.5" SAS/SATA/NVMe
I/O: Front: 1x VGA, 1x USB 3.0, 1x USB 2.0, Healthy LEDs, UID,
Rear: supports DC-SCM, 1x VGA, 1x RJ45 for Mgmt, 2x USB 3.0, 1x UART, UID
NIC: 2x OCP 3.0 Gen5 (support x8 or x16)
PCIe: Up to 8x FH PCIe Gen5 (6x x16 FHHL + 2x x8 HHHL or 4x x16 FHHL + 4x x8 HHHL)
Security: TPM/TCM
Management: ASPEED AST2600
PSU: (1+1) 550W/800W/1300W/1600W/2000W
Fan: 6* 6056 fans, (N+1) Redundant
Dimensions: 2U, 435mm (W) x 87mm (H) x 800mm (D)

<u>www.aivres.com</u>

Copyright © 2024 Aivres. All Rights Reserved. The information contained herein is subject to change without notice.

Ver 1.0
