*AIVRES*

DATASHEET

<b>KR2180V3</b>
<b>Flexible, High-Scalability 2U</b>
<b>1-Socket Server</b>

<b>KR2180V3 is a 2U server with one AMD EPYC™ 9005 processor and flexible configurations. It features more cores, a high base frequency, large cache, and high scalability, maximizing performance per CPU for ultimate storage and expansion within a 2U form factor. Ideal for cloud computing/virtualization, big data, distributed storage, and video transcoding applications, this series effectively enhances TCO benefits.</b>

<figure style="margin: 1rem 0; padding: 0.6rem; background: rgba(255,255,255,0.04); border-radius: 4px;">
  <img src="images/reducto/p001_figure_0005.jpg" alt="figure p1" style="max-width: 100%; max-height: 480px; display: block; margin: 0 auto;" />

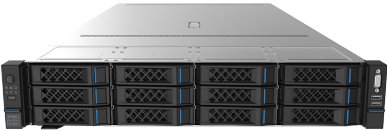

  <figcaption style="font-size: 0.78rem; color: rgba(255,255,255,0.55); text-align: center; margin-top: 0.5rem;">01

XXXXX</figcaption>
</figure>

• 1x AMD EPYC™ 9005 supporting up to 192 cores and TDP 500W with air-cooling

• Scalable, flexible storage configurations

• High scalability, maximizing performance per CPU for ultimate storage and expansion

<b>Technical Specifications</b>

<b>Model</b>: <b>KR2180-E3-A0-R0-00</b>
<b>Form Factor</b>: 2U rack server
<b>Processor</b>: 1x AMD EPYC™ 9005 processor, TDP up to 500W
<b>Memory</b>: 24x DDR5-5200 MT/s RDIMMs / 3DS RDIMM
<b>Storage</b>: 12x 3.5” SAS/SATA
24x 2.5” SAS/SATA/NVMe/E3.S
25x 2.5” SAS/SATA/NVMe (21x SAS/SATA + 4x NVMe)
<b>Internal:</b>
2x SATA/PCIe M.2
<b>Rear:</b>
4x 3.5” SAS/SATA
4x 2.5” SAS/SATA/NVMe
<b>PCIe</b>: 6x PCIe 5.0 x16 FHFL slots + 2x PCIe 5.0 x16 FHHL slots
<b>Network Interface</b>: 2x OCP 3.0 x16
<b>Ports</b>: <b>Front:</b> 1x VGA, 1x USB 3.0, 1x USB 2.0/LCD, Healthy LED, 1x UID
<b>Rear:</b> supports DC-SCM, 1x VGA, 1x RJ45 for Mgmt, 2x USB 3.0, 1x UART, 1x UID
<b>Cooling Options</b>: Air cooling, liquid cooling
<b>Fans</b>: (6) 6056 Dual-Rotor Fans (N+1) Redundant
<b>Management & Security</b>: ASPEED AST2600; intelligent chassis intrusion detection; BMC/BIOS firmware security; dual-chip dual-standby; digital signature; Trusted Module TPM 2.0 / TCM
<b>PSU</b>: 2x 550W/800W/1300W/1600W/2000W/2700W redundant Titanium/Platinum
<b>Dimensions</b>: 435mm (W) x 87mm (H) x 800mm (D)

<u>www.aivres.com</u>

Copyright © Aivres. All Rights Reserved. The information contained herein is subject to change without notice.

Ver 1.2
