*AiVRES*

<b>DATASHEET</b>

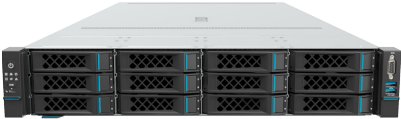

<b>KR2280-X3</b>

<b>Versatile Flagship 2U 2-Socket Server</b>

<b>KR2280-X3 is an all-purpose server with 2 Intel® Xeon® 6 Processors, delivering exceptional compute performance, storage performance and scalability. Its versatile configurations enable a broad range of workloads from general-purpose to heterogeneous computing, storage-intensive to I/O-intensive, with expansion slots to support PCIe GPUs. To optimize data center PUE, it fully supports cold-plated liquid cooling design with leak detection alert mechanisms to enhance system reliability.</b>

<figure style="margin: 1rem 0; padding: 0.6rem; background: rgba(255,255,255,0.04); border-radius: 4px;">
  <img src="images/reducto/p001_figure_0006.jpg" alt="figure p1" style="max-width: 100%; max-height: 480px; display: block; margin: 0 auto;" />
  <figcaption style="font-size: 0.78rem; color: rgba(255,255,255,0.55); text-align: center; margin-top: 0.5rem;">XXXXX XXXXX
XXXXX XXXXX XXXXX
XXXXXXXXXX XXXXX | | XXXXX</figcaption>
</figure>

• 2x Intel® Xeon® 6 processors

• Versatile front storage configurations of 12x 2.5” / 3.5” or 24x 2.5” drives

• Up to 15x PCIe slots

• Supports 4 double-width PCIe GPUs

<b>Technical Specifications</b>

<table>
<thead>
<tr>
<th> <b>Model</b> </th>
<th> <b>KR2280-X3-A0-R0-H0
AP Platform – Air Cooled</b> </th>
<th> <b>KR2280-X3-A0-R0-00
Air Cooled</b> </th>
<th> <b>KR2280-X3-C0-R0-00
Liquid Cooled</b> </th>
</tr>
</thead>
<tbody>
<tr>
<td> <b>Form Factor</b> </td>
<td colspan="3"> 2U rack server </td>
</tr>
<tr>
<td> <b>Processor</b> </td>
<td> 2x Intel ® Xeon® 6500/6700 series, TDP 350W </td>
<td colspan="2"> 2x Intel ® Xeon® 6 processors 6500/6700 series, up to 350W TDP </td>
</tr>
<tr>
<td> <b>Memory</b> </td>
<td> 24x DDR5-5600/6400 DIMM slots, supporting up to 12x MCR DIMMs at 8,800MT/s (GNR) </td>
<td colspan="2"> 32x DDR5-6400 MT/s RDIMMs / MCR DIMMs </td>
</tr>
<tr>
<td> <b>Storage</b> </td>
<td> 12x 2.5" SAS/SATA/NVMe
2x SATA/NVMe M.2 </td>
<td colspan="2"> 12x 3.5" SAS/SATA/NVMe
24x 2.5" SAS/SATA/NVMe
2x SATA/NVMe M.2 </td>
</tr>
<tr>
<td> <b>PCIe</b> </td>
<td> Up to 8x PCIe 5.0 slots, including 2x slots for hot-swap OCP 3.0 NICs </td>
<td> Up to 15x PCIe 5.0 slots, including 2x slots for hot-swap OCP 3.0 NICs </td>
<td> Up to 11x PCIe 5.0 slots, including 2x slots for hot-swap OCP 3.0 NICs, supports 4 double-width GPUs </td>
</tr>
<tr>
<td> <b>Network Interface</b> </td>
<td colspan="3"> 2x OCP 3.0 x16 </td>
</tr>
<tr>
<td> <b>Ports</b> </td>
<td colspan="3"> <b>Front:</b> 1x VGA, 1x USB 2.0, 1x USB 3.0, 1x USB Type C
<b>Rear:</b> 1x VGA, 1x RJ45 for Mgmt, 2x USB 3.0 </td>
</tr>
<tr>
<td> <b>Cooling Options</b> </td>
<td colspan="2"> Air cooling </td>
<td> Liquid cooling </td>
</tr>
<tr>
<td> <b>Fans</b> </td>
<td colspan="3"> 6x 6056 hot-swap fans with N+1 redundancy </td>
</tr>
<tr>
<td> <b>Management &amp; Security</b> </td>
<td colspan="3"> 1x TPM 2.0, ASPEED AST2600 </td>
</tr>
<tr>
<td> <b>Power Supply</b> </td>
<td colspan="3"> 2x 800W/1300W/1600W/2000W/2700W/3200W redundant Titanium/Platinum </td>
</tr>
<tr>
<td> <b>Dimensions</b> </td>
<td colspan="3"> 435mm (W) x 87mm (H) x 850mm (D) </td>
</tr>
</tbody>
</table>

<u>www.aivres.com</u>

Copyright © Aivres. All Rights Reserved. The information contained herein is subject to change without notice.

Ver 2.0
