*AIVRES*

DATASHEET

![figure](images/reducto/p001_figure_0003.jpg)

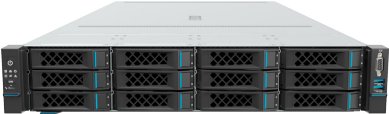

<b>KR2280V2</b>

<b>Multi-Purpose 2-Socket Server
with Storage, All-Flash Options</b>

<b>KR2280V2 with AMD EPYC™ 9004 is a flagship dual-socket server delivering breakthrough performance up to 96 cores per processor, supporting PCIe 5.0, all-flash, and CXL v1.1+. Its versatile configurations fulfill a broad range of requirements, offering options like robust storage, flexible 10 PCIe slot rear config, and E3.S all-flash. Its reliable, flexible platform design offers cost-efficient, easy maintenance.</b>

<figure style="margin: 1rem 0; padding: 0.6rem; background: rgba(255,255,255,0.04); border-radius: 4px;">
  <img src="images/reducto/p001_figure_0007.jpg" alt="figure p1" style="max-width: 100%; max-height: 480px; display: block; margin: 0 auto;" />
  <figcaption style="font-size: 0.78rem; color: rgba(255,255,255,0.55); text-align: center; margin-top: 0.5rem;">XXXXX XXXXX XXXXX XXXXX
XXXXX XXXX XXXXX XXXXX
XXXXX XXXXX XXXXX XXXXX</figcaption>
</figure>

• Up to 2x AMD EPYC™ 9004 supporting up to 96 cores and PCIe 5.0

• Supports CXL v1.1+ and all-flash

• Supports flexible configurations including max 32 hard-drive storage config; max 10 PCIe slot / 4 dual-width GPU + 2 OCP slot rear config; E3.S all-flash config

• Reliable "Common Building Block" platform design offering tool-free disassembly, easy deployment and serviceability

<b>AMD</b>

<b>Technical Specifications</b>

<b>Model</b>: <b>KR2280-E2-A0-R0-00</b>
<b>Form Factor</b>: 2U rack server
<b>Processor</b>: 1 or 2 AMD EPYC™ 9004 processors, TDP up to 400 W
<b>Memory</b>: 24 DDR5 DIMM (12ch), support RDIMM/3DS DIMM, 4800@1DPC
<b>Storage</b>: <b>Front:</b>
12x 3.5” SAS/SATA/NVMe
24x 2.5” SAS/SATA/NVMe
25x 2.5” (21x SAS/SATA + 4x NVMe)
24x E3.S
<b>Internal:</b>
2x SATA M.2 SSD or 2x NVMe M.2 SSD
4x 3.5" SAS/SATA
Up to 32x SATA drives (directly attached to CPU)
<b>Rear:</b>
Up to 4x 3.5" SAS/SATA
Up to 4x 2.5" SAS/SATA/NVMe
<b>NIC</b>: 2x OCP 3.0 x8 or x16
<b>PCIe</b>: Up to 10x PCIe slots (8x PCIe standard slots + 2x OCP 3.0 cards)
<b>Security</b>: 1x TPM 2.0 / TCM
<b>Management</b>: ASPEED AST2600
<b>IO</b>: <b>Front:</b> 1x VGA, 1x USB 3.0, 1x USB 2.0/LCD, Healthy LED, UID
<b>Rear:</b> 1x VGA, 1x RJ45 for Mgmt, 2x USB 3.0, 1x UART, UID
<b>Fan</b>: (1+1) redundant; 550W/800W/1300W/1600W/2000W/2700W/3200W Platinum/Titanium CRPS
<b>PSU</b>: 437.6mm (W) x 43.05mm (H) x 850mm (D)
<b>Dimensions</b>: 435mm (W) x 87 mm (HD) x 800 mm (D)

<u>www.aivres.com</u>

Copyright © 2024 Aivres. All Rights Reserved. The information contained herein is subject to change without notice.

Ver 1.0
