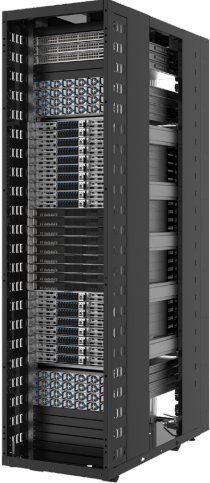

# Aivres KRS8000 datasheet (parsed) Parsed from Aivres's PDF https://aivres.com/wp-content/uploads/KRS8000v3.1.pdf on 2026-10-15 (2 pages; OCR and table reconstruction by Reducto; tables are HTML inside this Markdown, images are figure crops from the PDF). Specifications belong to Aivres and are subject to change without notice; the PDF is the authority. Products: [krs8000v3](https://aivres.upstation.io/p/krs8000v3) --- *AIVRES* DATASHEET KRS8000V3 AI Rack Based on NVIDIA GB200 NVL72 KRS8000V3 is an L11 AI rack based on NVIDIA GB200 NVL72, integrating 36 NVIDIA Grace™ CPUs and 72 NVIDIA Blackwell GPUs in a rack-scale, liquid-cooled architecture, achieving breakthrough performance in real-time trillion-parameter large language model (LLM) inference and training. KRS8000V3 with GB200 NVL72 is poised to redefine performance benchmarks for AI, HPC, and data analytics, making it a pivotal component in next-generation computing infrastructure. 30X LLM Inference vs. Nvidia H100 Tensor Core GPU 25X Energy Efficiency vs. H100 4X LLM Training vs. H100

figure p1 — KEE XCE XCE KEE EXCE EXCE EXCE XCC TEE

18X Data Processing vs. H100 KEY FEATURES NVIDIA Blackwell Rack-Scale Architecture: • Connects 72 Blackwell GPUs via NVIDIA® NVLink™. • Delivers 130 TB/s of low-latency communication bandwidth. • Acts as a single massive GPU for efficient processing. Performance Enhancements: • Achieves 30X faster real-time trillion-parameter LLM inference compared to previous generations. • 4X faster training for large language models using FP8 precision. Advanced Data Processing: • Includes a hardware decompression engine supporting LZ4, Deflate, and Snappy formats. • Provides up to 800 GB/s decompression throughput. • Achieves 18X faster performance for database query benchmarks compared to traditional CPUs. Memory and Bandwidth: • Offers 8 TB/s high memory bandwidth. • NVIDIA Grace CPU NVLink®-C2C interconnect ensures high-speed data transfer. USE CASES AI Training and Inference: • Optimized for training large-scale models and performing real-time inference. • Particularly effective for transformer-based models and other resource-intensive AI applications. Big Data Analytics: • Enhances the efficiency of big data processing pipelines. • Reduces storage costs and processing times for large datasets. Scientific and Engineering Simulations: • Speeds up simulations in various domains, including fluid dynamics, circuit design, and more.

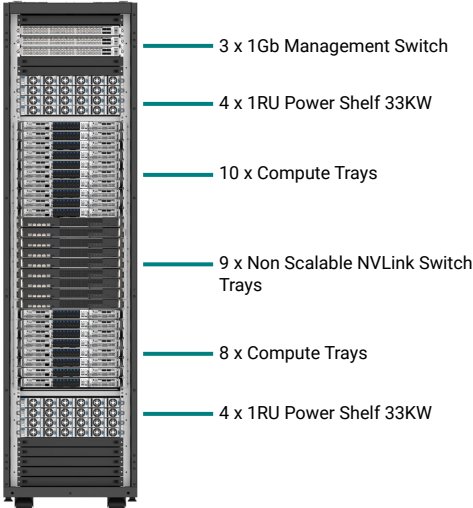

www.aivres.com Copyright © Aivres. All Rights Reserved. The information contained herein is subject to change without notice. Ver 3.0 Technical Specifications Model: NVIDIA® GB200 NVL72 Configuration: 36 Grace CPU and 72 Blackwell GPUs FP4 Tensor Core2: 1,440 PFLOPS FP8/16 Tensor Core2: 720 PFLOPS INT8 Tensor Core2: 720 POPS FP16/BF16 Tensor Core2: 360 PFLOPS TF32 Tensor Core: 180 PFLOPS FP32: 6,480 TFLOPS FP64: 3,240 TFLOPS FP64 Tensor Core: 3,240 TFLOPS GPU Memory | Bandwidth: Up to 13.39 TB HBM3e | 576 TB/s NVLink Bandwidth: 130TB/s CPU Core Count: 2,592 Arm® Neoverse V2 cores CPU Memory | Bandwidth: Up to 17.28 TB LPDDR5X | Up to 18.4 TB/s Rack Specifications Dimensions: 600mm (23.6") W x 2236mm (88") H x 1200mm (47.2") L Weight: 1,553.27 kg (3,434.37 lbs) NVL Config: 72x 1 NV OOB Switch: Option 1: 3 x SN2201 DC Option 2: 4 x SN2201 DC NVL Cartridge: 4 Rack Type (Per Rack): 9x 1U NVLink Switch Trays 18x 1U Compute Trays 8x 1U Power Shelves Power-Shelf: 8x 33kW Busbar: 1,400A Rack Manifold: Option 1: 44RU, BF Option 2: 44RU, TF CDU: Option 1: L2L In-Row Option 2: L2L In-Rack Option 3: L2A Sidecar Compute Tray CPU/GPU: 2x Grace CPUs + 4x Blackwell GPUs Cooling: 1U liquid cooled Storage: 8x E1.S NVMe SSDs M.2: 1x Onboard NVMe / SATA M.2 Front I/O: 1 x USB 3.0, 1x Mgmt I/O, 1x RJ45, 1x Mini Display Port N-S Networking: 2x FHFL PCIe 5.0 x16 (BF3 or NIC Card) E-W Networking: 2x Mezzanine card on board 4x HHHL PCIe 5.0 x16 with 400G bandwidth Fan: CPU region: 8x 12V 4056 hot-swap fans with N+1 redundancy Management: DC-SCM BMC management module TPM: Supports TPM 2.0 Switch Tray Type: 2x NVLink X-800 Bandwidth: 14.4TB/s Cooling: 1U liquid cooled Front I/O: 2x RJ45, 1x USB, 1x UART www.aivres.com Copyright © Aivres. All Rights Reserved. The information contained herein is subject to change without notice. Ver 3.1
